Self-Priming Pump Set

P U M P	MODEL		50KB15-3	80KB10-3	80KB13-4	100KB16-6
	Suction, Discharge port dim (mm)		50(2")	80(3")	80(3")	100(4")
	Capacity	Max capacity(m3/h)	36	45	50	96
	Capacity	Cont. capacity(m3/h)	22	30	36	64
	Head	Max head (m)	26	18	25	31
	Head	Cont. head (m)	15	10	13	16
	Engine speed (rpm)		3600
	Self-priming time (s/4m)		70	120	120	180
	Max suction head (m)		8
Model			170FP	170FP	178FP	186FP
UNIT	Dry weight (kg)		35	40	52	69
UNIT	Dimensions (L x W x H) (mm)		525x415 x495	555x415 x495	590x445 x525	640x480 x600

Medium-sized irrigation machine

Model	Capacity (m 3 /h)	Head (m)	Speed (r/min)	Efficiency (%)	Equipped (kw/hp)
100HW-8S(4")	90	8	2900	79	3/4
150HW-5S(6")	180	5	1450	80	4/5
200HW-4S(8")	340	4	1060	81	5.5/8
200HW-8S(8")	360	8	1450	82	11/15
250HW-4S(10")	450	4.2	980	82	7.5/12
250HW-7S(10")	450	7	980	83	15/20
300HW-4S(12")	710	4	780	82.5	11/15
300HW-7S(12")	780	7	980	84	22/30
350HW-8S(14")	1000	8	980	85	30/40
400HW-7S(16")	1260	7	780	86	30/40
500HW-6S(20")	1980	6	580	86	45/60
650HW-7S(26")	3660	7.6	480	90	100/135

　 Type HW(HBC)mixed-flow pumps are suitable for agricultural irrigation and industrial water supply and drainage with the water temperature below 50°C

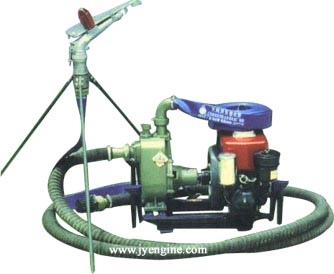

Sprinkler Set

Model	Equipped power	Pump				Spray gun/piston
Model	Equipped power	Model	Speed (r.p.m.)	Lift	Flow (m3/h)	Model	Range
ZP-3F-1	3HP	50BPZ-35	3100	40	10	PY1-30	28.5
ZP-4F-1	4HP	50BPZ-35	2900	35	14	PY1-40	31.9
ZP-5F-1	5HP	50BPZ-35	3100	40	15	PY1-40	32.2
ZP-6S-1	6HP	50BPZ-45	2700	45	15	PY1-40	32.5
ZP-6N-1	6.5HP	50BPZ-45	2600	45	15	PY1-40	32.5
ZP-12S (N)-5	12HP	50BPZ-55	2900	55	24	PY1-50	40.0

　　GASOLINE PUMP SET

WP20

WP40

Main characteristics
Advanced 4-stroke gasoline engine New light aluminum alloy self-suck pump Light and simple frame structure.

Main uses
Irrigation in garden and project operation, water supply to high land, pumping water in curtilage, irrigation in farmland, drainage in down raceway etc.

Model		WP20	WP30	WP40
P u m p	OUTLET/INLET (inch)	50(2)	80(3)	100(4)
	TOTAL HEAD (m)	28	30	39
	SUCTION (m)	8	8	8
	CAPACITY (m 3 /h)	30	60	96
	SPEED (rpm)	3600	3600	3600
E n g i n e	MODEL	JF168		JF240
	TYPE	TILT SINGLE CYLINDER FORCED AIR COOLING 4-STROKE
	DISPLACEMENT(cm3)	163		242
	BORE x STROKE(mm x mm)	68 x 45		73 x 58
	MAX POWER(hp/rpm)	5.5/3600		8/3600
	STARTING METHOD	RECOIL STARTER
	FUEL VOLUME(L)	3.6		6
	OIL VOLUME (L)	0.6		1.1
Sets	PACKING SIZE(mm)	510 x 375 x 460	510 x 375 x 460	510 x 375 x 460
	NET WEIGHT (kg)	27	31	44
