¡¡¡¡AIR-COOLED GENERATING SET |
| Model |
Economical type |

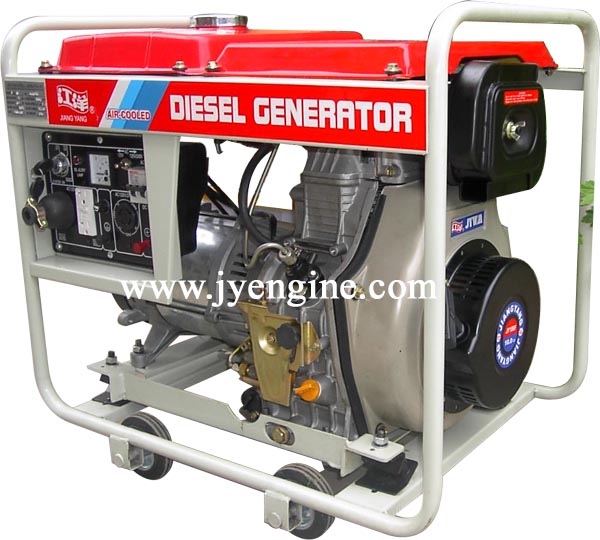

Luxury type |
Silent type |
| 2GF-L |
3GF-L |
5GF-L |
2GF-LH(E) |
3GF-LH(E) |
5GF-LH(E) |
3GF-LDE |

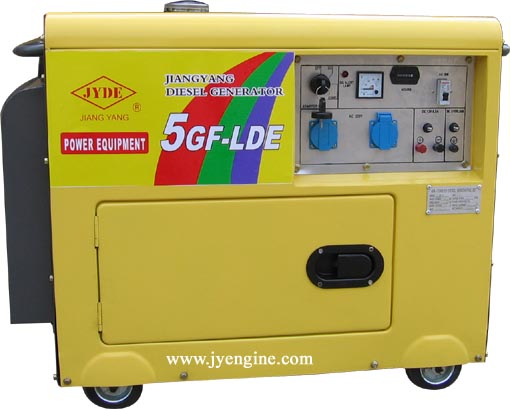

5GF-LDE |
G
E
N
E
R
A
T
O
R |
Type |
Revolving field type 2 pole generator |
Frequency(Hz) |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
Cont.output(kw) |
1.7 |
2 |
2.8 |
3.3 |
4.2 |
5 |
1.7 |
2 |
2.8 |
3.3 |
4.2 |
5 |
2.8 |
3.3 |
4.2 |
5 |
Voltage(A.C.)(V) |
230 |
240
(120) |
230 |
240
(120) |
230 |
240
(120) |
230 |
240
(120) |
230 |
240(120) |
230 |
240
(120) |
230 |
240(120) |
230 |
240
(120) |
Current(A.C.)(A) |
7.4 |
8.3
(16.7) |
12.2 |
13.8
(27.5) |
18.3 |
20.8
(41.7) |
7.4 |
8.3
(16.7) |
12.2 |
13.8
(27.5) |
18.3 |
20.8
(41.7) |
12.2 |
13.8
(27.5) |
18.3 |
20.8
(41.7) |
Engine Speed(r/min) |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
Phase |
Single phase |
Power factor |
1 |
Excitation system |
Controlled Constant Self-excitation |
D.C.output V/A |
12V/8.3A |
Operation Capacity |
12 hour Constant Operation |
Coupling pattern |
Straight shaft coupling |
E
N
G
I
N
E |
Model |
170FG |
178FG |
186FG |
170FG(E) |
178FG(E) |
186FG(E) |
178FGE |
186FGE |
Type |
Direct Injection Vertical, 4-Cycle, air-cooled diesel engine |
Displacement cc(cu.in) |
211(12.88) |
296(18.06) |
406(24.78) |
211(12.88) |
296(18.06) |
406(24.78) |
296(18.06) |
406(24.78) |
Max. output(kw/rpm) |
2.8 |
3.1 |
4.6 |
4.6 |
6.6 |
7.35 |
2.8 |
3.1 |
4.4 |
4.6 |
6.6 |
7.35 |
4.4 |
4.6 |
6.6 |
7.35 |
Cont.output(kw/rpm) |
2.5 |
2.8 |
4 |
4.4 |
5.9 |
6.6 |
2.5 |
2.8 |
4 |
4.4 |
5.9 |
6.6 |
4 |
4.4 |
5.9 |
6.6 |
Starting system |
Recoil |
LE:Electric LH:Recoil |
Electric |
Governor system |
Centrfugal weight system |
Fuel |
Diesel light fuel (BS-AL or equivalent) |
Fuel tank capacity(L) |
2.5 |
3.5 |
5.5 |
7.5 |
13.5 |
15 |
13.5 |
16 |
Lube oil capacity(L) |
0.8 |
1.1 |
1.65 |
0.8 |
1.1 |
1.65 |
1.1 |
1.65 |
BorexStroke(mm) |
70x55 |
78x62 |
86x70 |
70x55 |
78x62 |
86x70 |
78x62 |
86x70 |
Protection system |
Low oil, Warning System/Stop Device (not for L-series) |
U
N
I
T |
Noise level at 7m db(A) |
79 |
82 |
85 |
79 |
82 |
85 |
70 |
Dimensions
(LxWxH)(mm) |
575x400
x500 |
640x480
x530 |
720x480
x580 |
575x400
x500 |
640x480
x530 |
720x480
x580 |
840x520
x640 |
905x520
x680 |
Dry weight(kg) |
46 |
61 |
95 |
L E:70 LH:65 |
L E:85 LH:80 |
L E:100 LH:95 |
126 |
165 |
|
|
