Water-cooled Engine

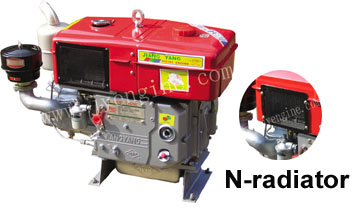

S1100N
Specifications
Model
S1100
S1100N
S1100D
S1100ND
S1100WP
Type
Single-cylinder,Horizontal 4-cycle
Combustion System
Swirl
Bore x Stroke(mm)
100*115
Displacement(L)
0.903
Compression Ratio
20:1
Output (Hp/rpm)
16/2200
Cooling System
Evaporative
Radiator
Evaporative
Radiator
Evaporative
Lubrication System
Combined pressure and splash
Starting Method
Hand cranking
Hand cranking
Starting motor
Starting motor
Hand cranking
Net Weight(kg)
155
155
160
160
160
Overall Dimensions(L*W*H)(mm)
900*440*760
